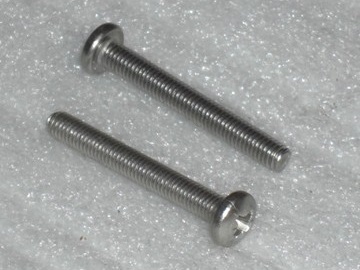

10.32 UNF x 1¼” Phillips Pan Head Screw
£0.40 – £7.00 + VAT
Unified Fine thread 32 TPI
- Description
- Additional information
Description
Description
| 10.32 UNF x 1.1/4″ Phillips Pan Screw | |
| Major Diameter | 3/16″ |
| Thread Pitch | 32 TPI |
| Length under head | 1.25″ |
| Thread Length | 1.25″ |
| Drive | Phillips |
| Cap Diameter | 11/32″ |
| Cap Height | 1/8″ |
| Material Grade | 18-8 (A2-70 or 304) stainless steel |
| Manufacture | Cold-forged; Rolled threads |
| Applicable Standard | BS1580-3:2007 |
| May be confused with | Phillips Pan |
Additional information
Additional information
| Weight | 0.005 kg |
|---|---|
| Options | Pack of 1, Pack of 10, Pack of 20 |
