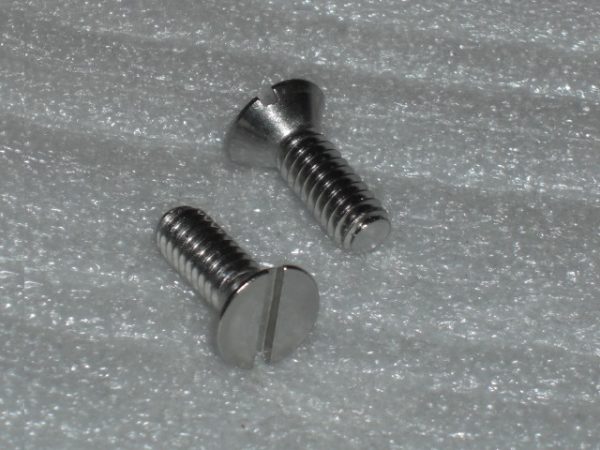

10.32 UNF x 5/8″ Slot Countersunk Screw
£0.20 – £7.50 + VAT
Unified Fine thread 32 TPI
- Description
- Additional information
Description
Description
| 10.32 UNF x 5/8″ Slotted Countersunk Screw | |
| Major Diameter | 3/16″ |
| Thread Pitch | 32 TPI |
| Length overall | 0.750″ |
| Thread Length | 0.625″ |
| Drive | Slot |
| Cap Diameter | 11/32″ |
| Thread Included Angle | 60° |
| Countersink Angle | 80° |
| Material Grade | 18-8 (A2 304)stainless steel |
| Manufacture | Cold-forged; Rolled threads |
| Applicable Standard | BS1580-3:2007 |
Additional information
Additional information
| Weight | 0.002 kg |
|---|---|
| Options | Pack of 1, Pack of 10, Pack of 20, Pack of 50 |
