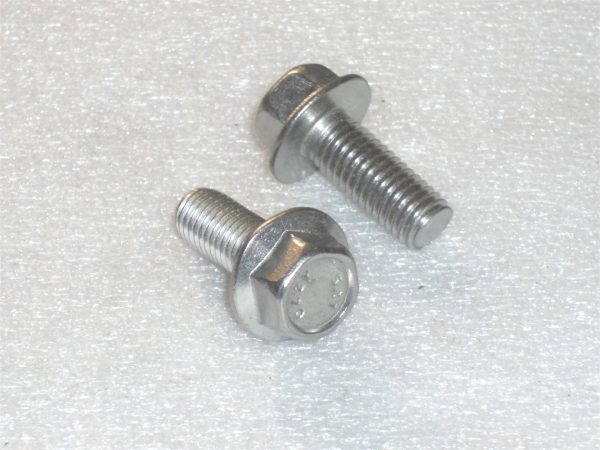

M10 x 25 Flanged Hex Screw DIN 6921 A2
£0.75 – £13.50 + VAT
ISO Metric Coarse thread 1.50mm pitch
- Description
- Additional information
Description
Description
| M10 x 25 Flange Hex Screw | |
| Length under head | 25mm |
| Pitch | 1.50mm |
| Flange diameter | 22mm |
| Hexagon AF | 15mm |
| Total Height of Head | 8mm |
| Flange Depth | 2mm |
| Applicable Standard | DIN6921 |
| Material Grade | A2-70 (304) stainless steel |
Additional information
Additional information
| Weight | 0.025 kg |
|---|---|
| Options | Pack of 1, Pack of 10, Pack of 20 |
